Quick Start Guide: SANWEAR-GT



Detailed Quick Start:

1. Hardware Overview

parts@2x.svg

a. Parts of the SANWEAR-GT

  • Ear Tips: Available in different sizes for optimal fit and comfort.
  • Microphone: Built-in for calls and voice commands.
  • Sport Hooks: Ensure a secure fit during physical activities.
  • Charging Pads: Magnetic pads for easy and efficient charging.

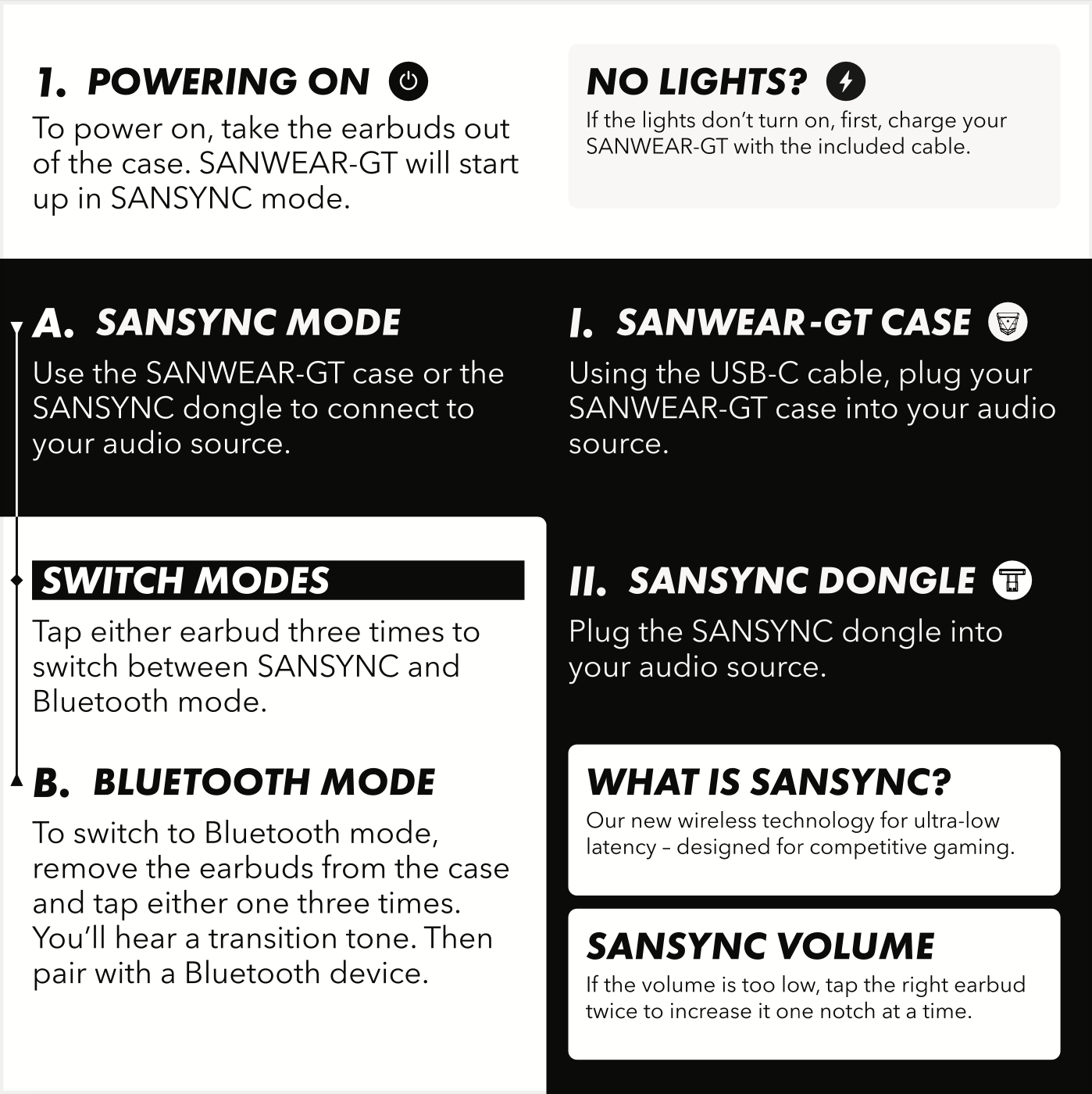

2. Set Up Your SANWEAR-GT

Screenshot 2024-07-09 at 5.38.28 PM.png

a. Power on the device

  • Take the earbuds out of the case by pulling on the magnetic buds from the sides of the case.

b. Get connected (SANSYNC Mode)

i) SANSYNC Case Connection, with Cable (Optimal for Gaming and High-Quality Listening)

  1. Directly connect your SANWEAR-GT case to your intended device using any cable compatible with USB-C.
  2. Take the earbuds out of the case by pulling on the magnetic buds from the sides of the case to enter pairing mode.
  3. Ensure SANWEAR-GT is in SANSYNC mode:
    • If it is in Bluetooth mode, tap the touch side of either earbud three times.
  4. Listen using SANSYNC.



ii) SANSYNC Dongle Connection

  1. Plug the small USB-C dongle into your intended device.
  2. Take the earbuds out of the case by pulling on the magnetic buds from the sides of the case to enter pairing mode.
  3. Ensure SANWEAR-GT is in SANSYNC mode:
    • If it is in Bluetooth mode, tap the touch side of either earbud three times.
  4. Listen using SANSYNC.

c. Get connected (Bluetooth Mode)

i) Bluetooth Mode

  1. Power on units by taking them out of the case, or by pushing the triangular pair button on the back of the charging case.
  2. Turn Bluetooth "on" for your intended device.
  3. Select "SANWEAR-GT" on your device to pair.
  4. Listen using Bluetooth.

ii) Auto-Switching to Bluetooth

  • If no device connection is detected between the SANWEAR-GT case and another device, SANSYNC will turn off, and SANWEAR-GT will automatically enter Bluetooth mode.
  • To manually switch to Bluetooth mode, tap three times on either earbud.

3. Discover the Basics

a. Using SANWEAR-GT in SANSYNC Mode

  • Volume Up: Tap twice on the right side to increase the volume by one step.
    • A short tone will sound when the device reaches maximum volume.
  • Volume Down: Tap twice on the left side to decrease the volume by one step.
  • Mute/Unmute: Short hold either side to mute or unmute the microphone.
  • Game Mode On/Off (SANSYNC Low Latency Mode): This is the default mode optimized for SANWEAR-GT. Tap three times on either side to switch between SANSYNC (Ultra Low Latency) mode and Bluetooth mode. A pulse sound will play to confirm the mode switch.
  • More gestures can be unlocked and all gestures can be customized in SOUNDSCAPE (Mobile app).

b. Using SANWEAR-GT in Bluetooth Mode

  • Volume Up: Tap, then tap and hold on the right side.
  • Volume Down: Tap, then tap and hold on the left side.
  • Pause/Play: Tap once to pause or play your audio.
  • Answer a Call: Short hold on either side.
  • Decline a Call: Long hold on either side.
  • More gestures can be unlocked and all gestures can be customized in SOUNDSCAPE (Mobile app).

c. Charge

  • Connect to any USB-C power adapter.

4. Unlock More in SOUNDSCAPE™

a. Using the SOUNDSCAPE™ App

NOTE: SANWEAR-GT compatible update will happen on July 20th, 2024.

  • Download the SOUNDSCAPE™ app to customize your audio experience, enable additional gestures, and access firmware updates. Available on both iOS and Android.
  • iOS Download | Android Download

1) Movie Mode

  • Available through the SOUNDSCAPE™ app for an enhanced entertainment experience – specially tuned bass and crisp dialogue.

2) Competitive Mode

  • Available SOON through the SOUNDSCAPE™ app for an enhanced gaming experience – lower ear fatigue and clearer footsteps.

5. Regulatory Information

Download Regulatory PDF →

a. FCC Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: This device may not cause harmful interference and must accept any interference received.

b. CE Compliance

SANWEAR-GT conforms to Directive 2014/53/EU. For full details, refer to the CE marking on the product or packaging.

c. Battery Information

  • Battery Composition: Lithium-ion.
  • Battery Life: Up to 33 hours on a full charge.
  • Safety Information: Do not disassemble, crush, puncture, or dispose of in fire or water. Replace only with the specific type recommended by the manufacturer.

6. Safety Information

a. Hearing Safety

Protect your ears. Avoid listening at high volumes for extended periods. If symptoms like ringing in the ears occur, reduce volume or take a break.

b. Environmental Information

Recycle packaging responsibly. Dispose of the device at your local electronics recycling point.
